Garden variety 8-bit SDR TV has a displayed dynamic range of around 32:1, or 5 stops, while HDR has in the neighborhood of 14 stops, which corresponds roughly to the sensitivity of the human eye for a single, or static scene. HDR also has a vastly greater color volume than SDR. Videos uploaded to YouTube in HDR benefit not only from greater contrast, color volume and sharpness, but also suffer from significantly fewer compression artifacts than SDR videos. The absence of unsightly banding artifacts alone should be reason enough for choosing HDR. No one, having seen the HDR version of a video, would prefer the SDR one. Hundreds of different models of mobile phones currently on the market now support HDR. For those of us not shooting Netflix Originals or having our masterpieces of cinematic art screened at international film festivals, YouTube offers the very best platform for exhibiting our work and reaching the widest possible audience. Our hope is that this tutorial will help you to get started uploading HDR videos to YouTube with as little fuss as possible. The following are setup instructions for the a7s III, the Blackmagic Ultrastudio 4K Mini and LG OLED TV, along with guidance on settings for Final Cut Pro and Compressor for the purpose of uploading HDR10 videos to YouTube.

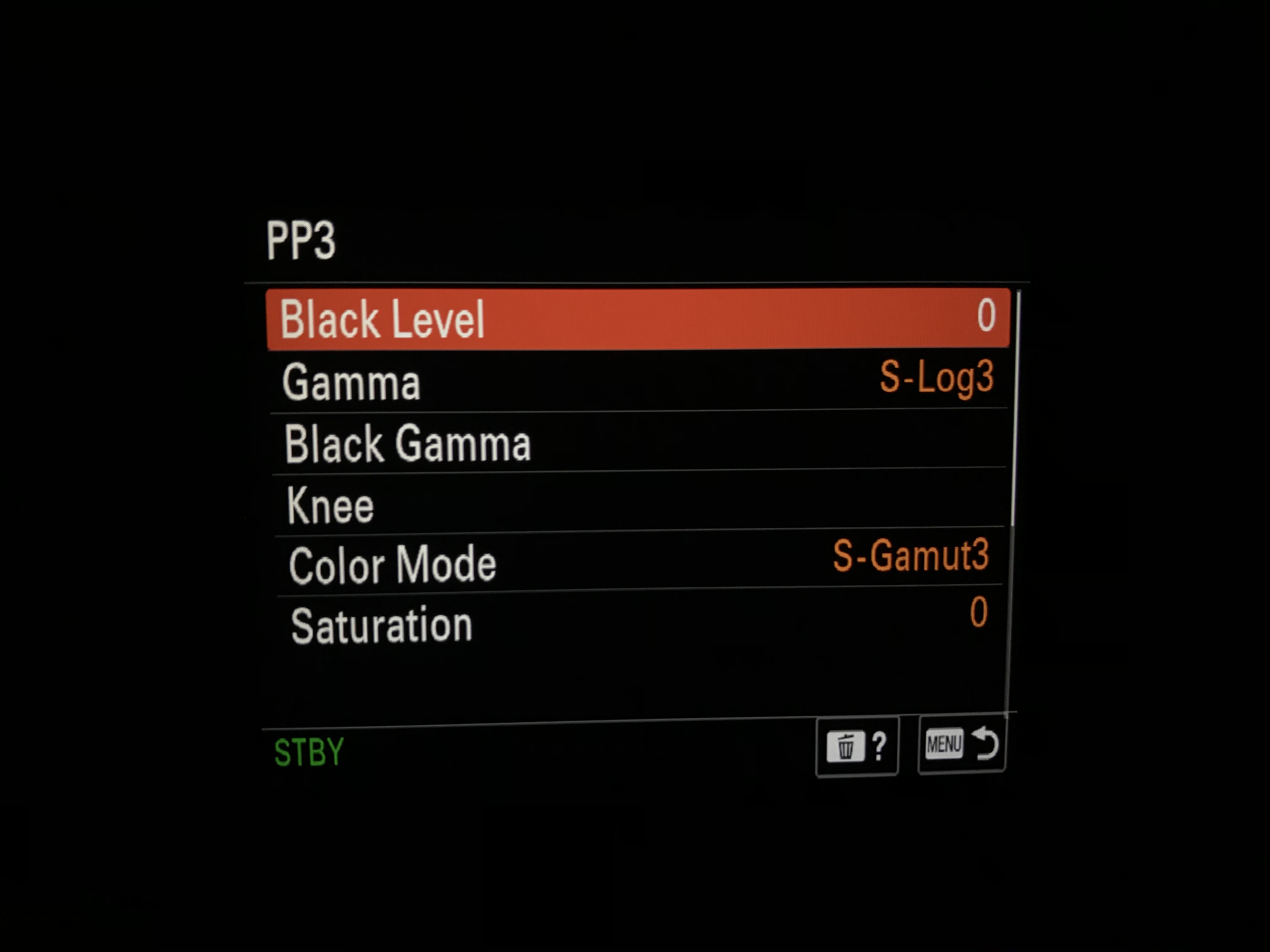

In picture profile, be sure to select S-Gamut3, as it is compatible with Rec. 2020. S-log3 captures 13 stops of dynamic range, which is comparable to film negatives.

Note: For critical work, we really recommend shooting RAW, not XAVC S-I internal.

Zebras on the Ninja V are wonky, while false color is effortless to use and thoroughly reliable.

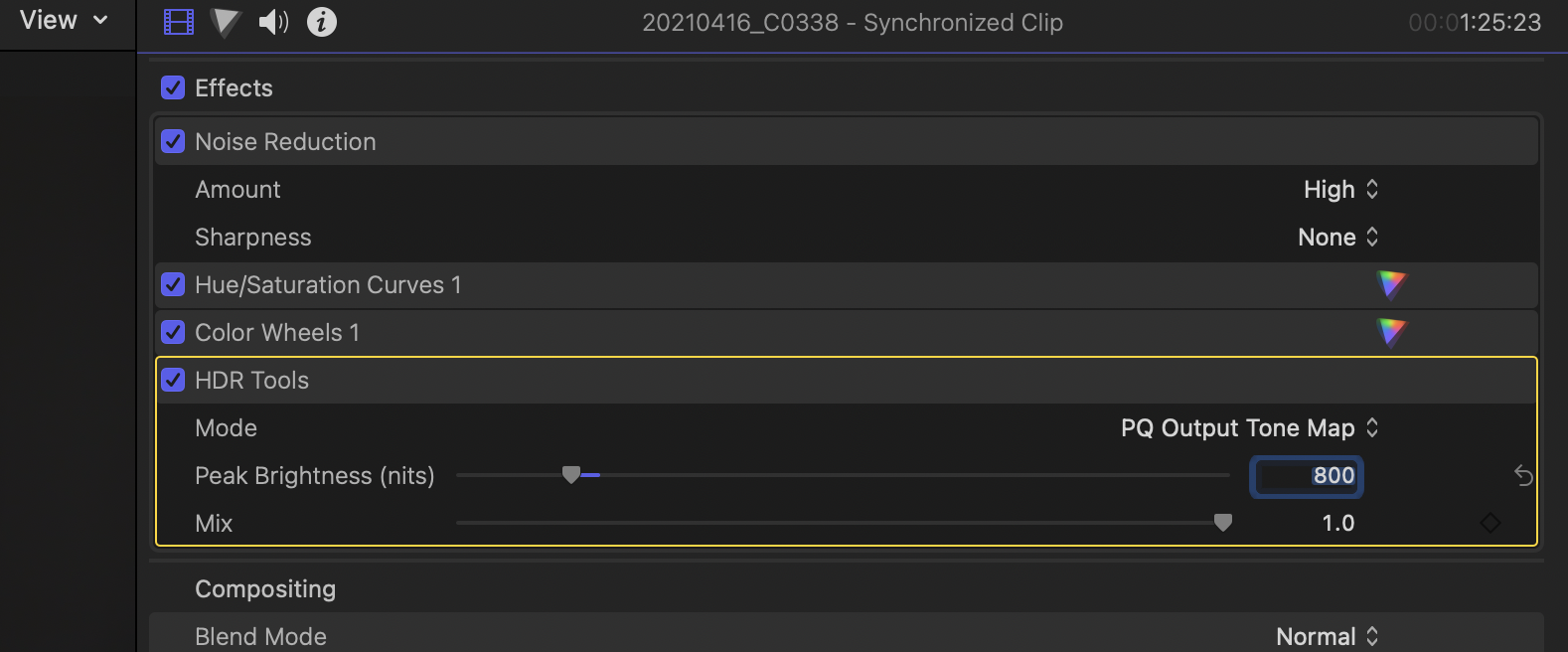

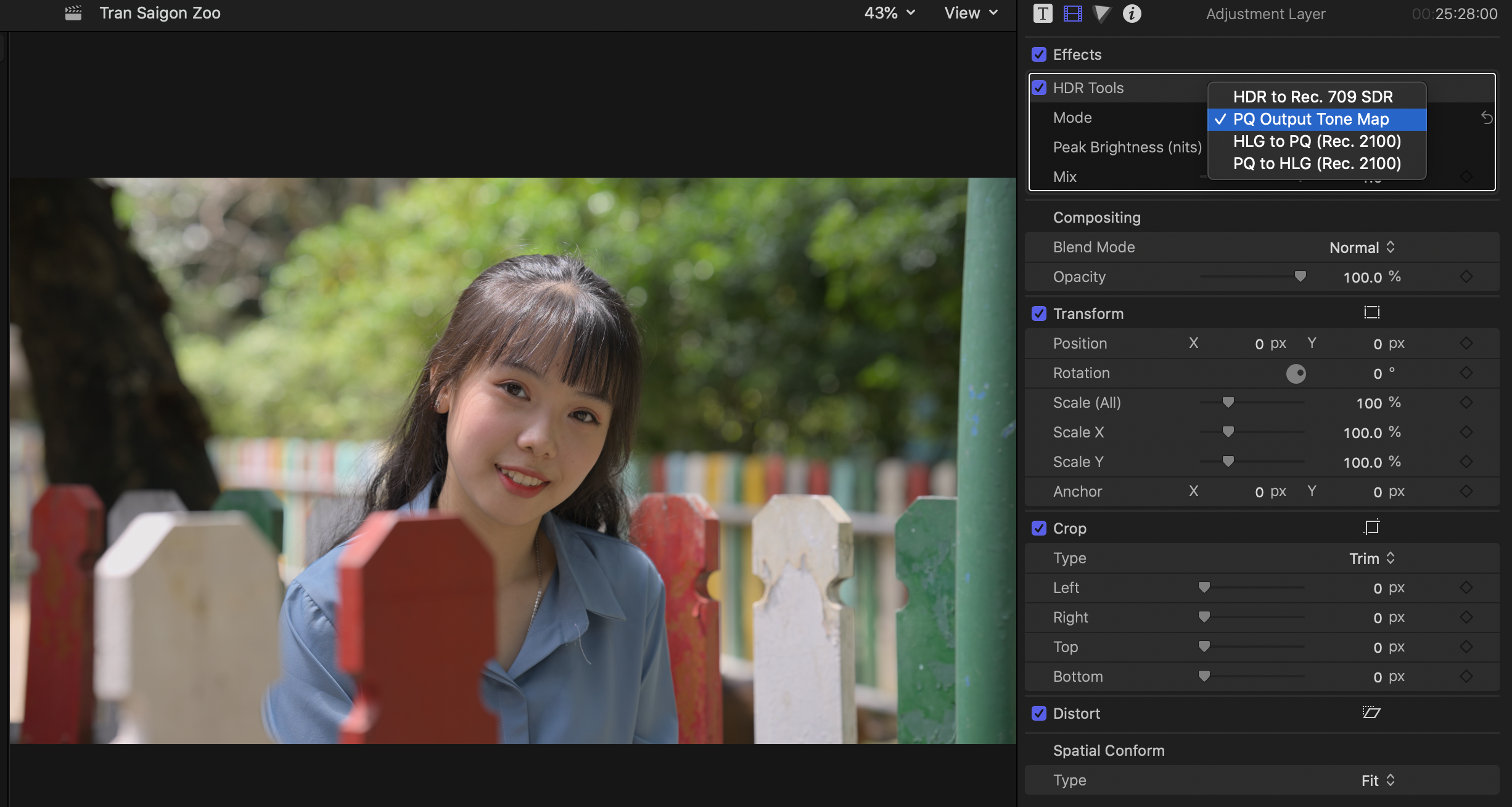

In spite of bizarre claims made in some online tutorials suggesting that tone mapping in Final Cut Pro allows for color correction in lieu of a proper external monitor, MacBook Pro and iMac displays may not be used for grading HDR video. Furthermore, it is not advisable to connect either directly to an HDR monitor or television set without an I/O box. Nor should one be relying on a field monitor like the Shogun Inferno for color grading. Suitable displays include the Asus ProArt PA32 UC, ProArt PA32 UCX and LG OLED televisions. Apple’s Pro Display XDR is not recommended, as one can pick up as many as three Asus monitors or four 55″ OLED televisions for the cost of one XDR display with stand, nano textured glass and 3-year extended warranty. You might also consider adding a consumer reference display.

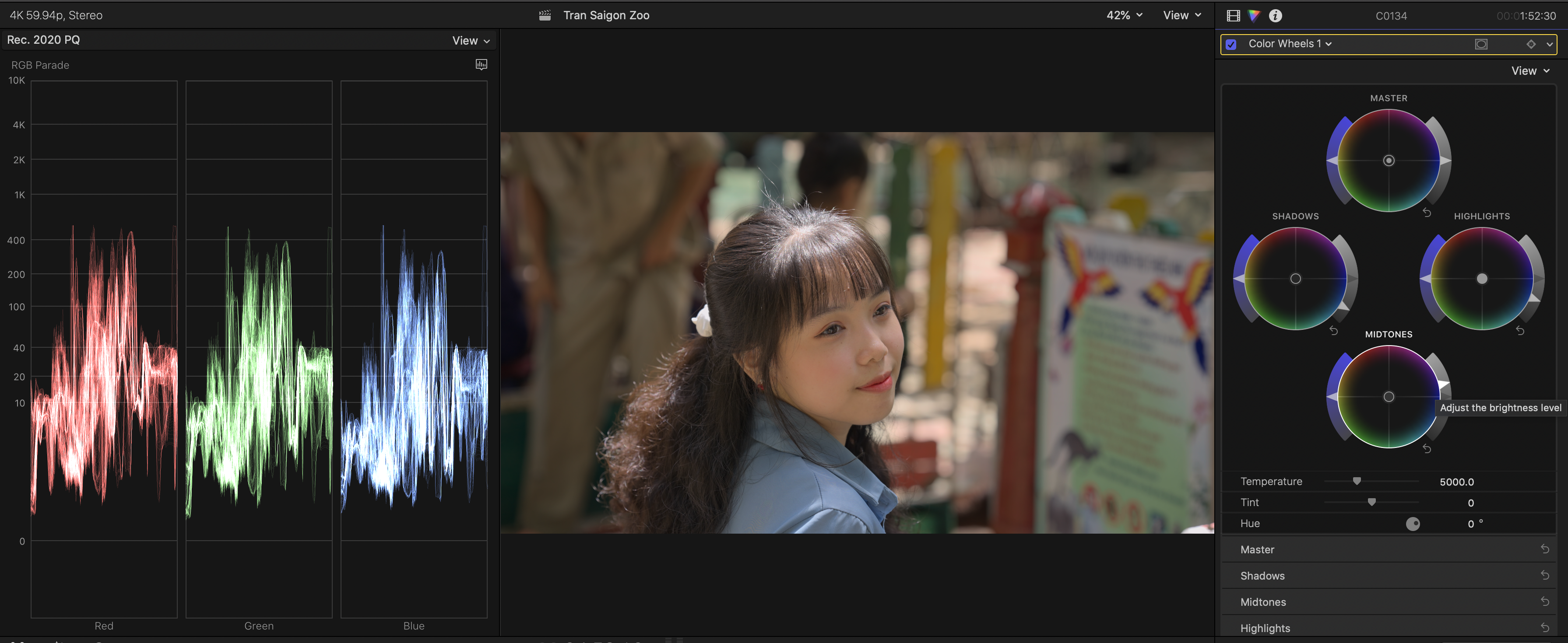

Exercise restraint and resist the temptation to crank everything up to 11 just because you’ve got a wider palette to work with! A little bit goes a long way. Most of the image, from shadows to mid-tones, should still be graded under 100 nits as before. Watch Netflix shows to get acquainted with how colorists deal with the expanded range of brightness: The Spy (2019), The Trial of the Chicago 7 or Altered Carbon are as good a place to start as any. A color correction workflow can be found here.

For Compressor v.4.5.1 and later, skip ahead to step no.31.

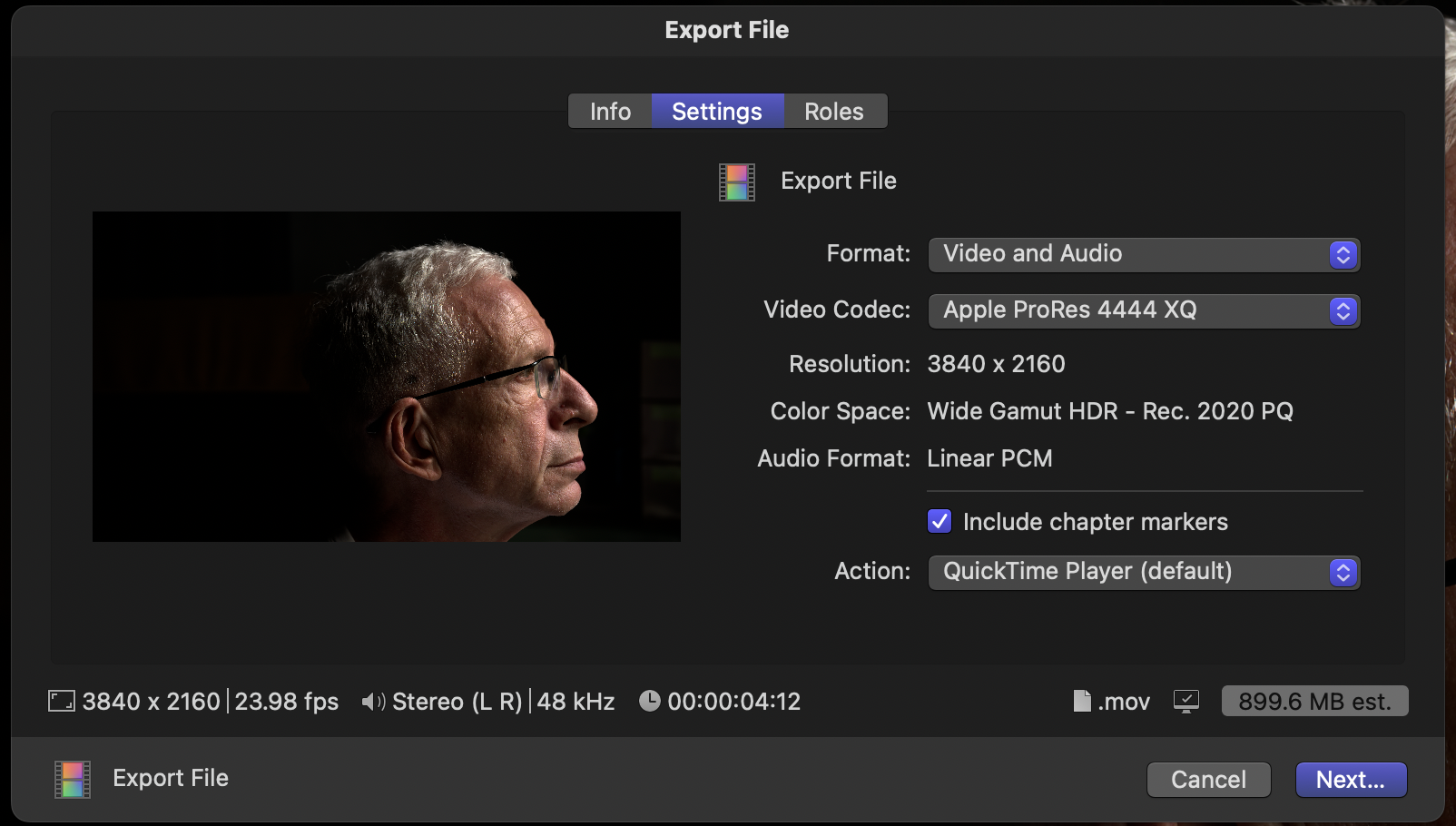

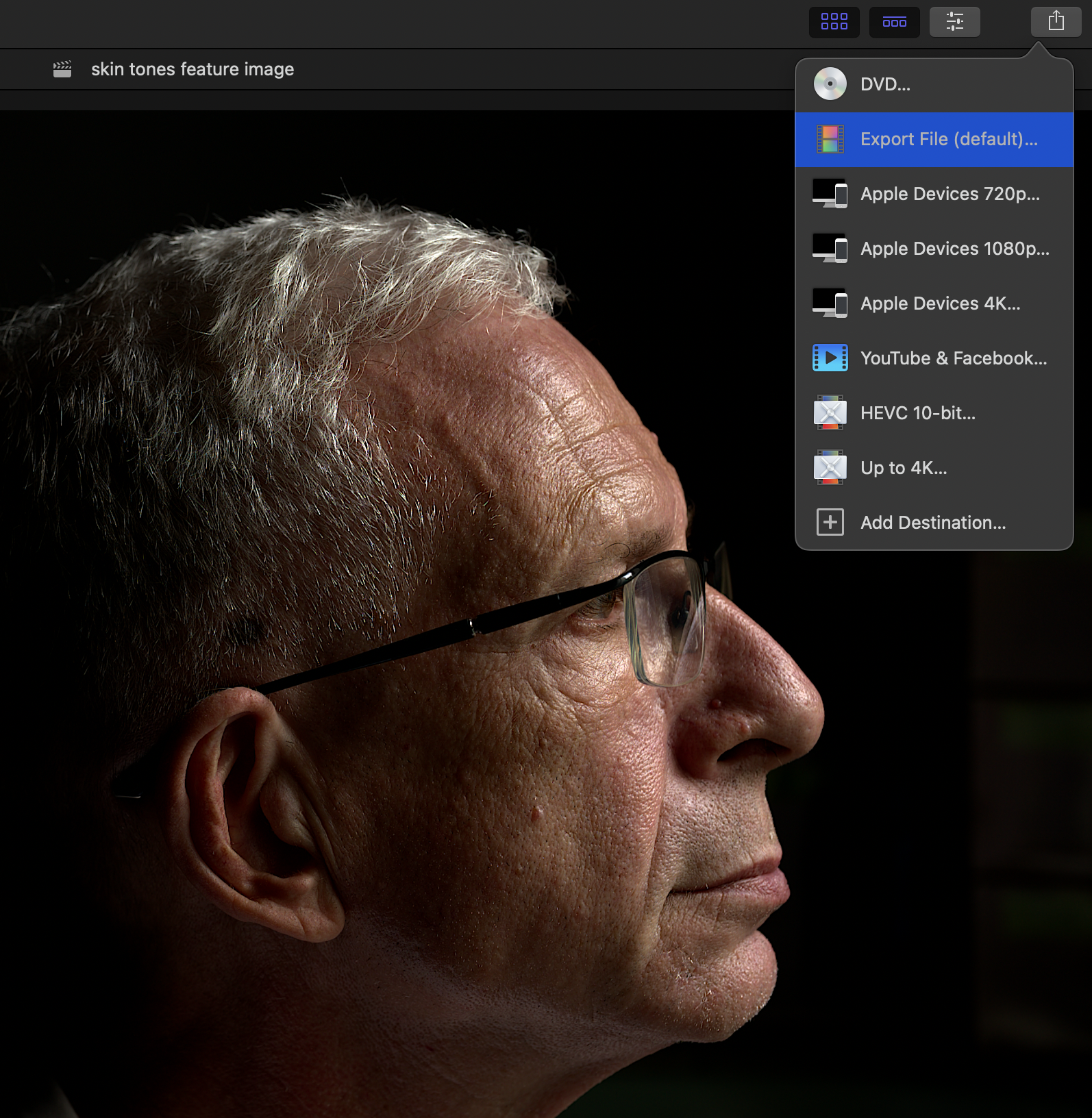

Note: Beginning with Compressor ver. 4.5.1, Apple added a Prepare for YouTube & Facebook share option to create a file for uploading to those sites. Sharing directly to YouTube from within the app is no longer possible.

16 thoughts on “Comprehensive Workflow: Sony a7s III S-Log3 HDR10 in Final Cut Pro

  1. Thanks a lot for this awesome article with a ton of useful info, Jon. After watching your latest video on YT I`m hooked on this HDR thing. I can see myself spending quite some time to figure everything out. Again, thanks for sharing this with us.

  2. Thank you so much for this awesome post.
    Recently started learning HDR Grading.

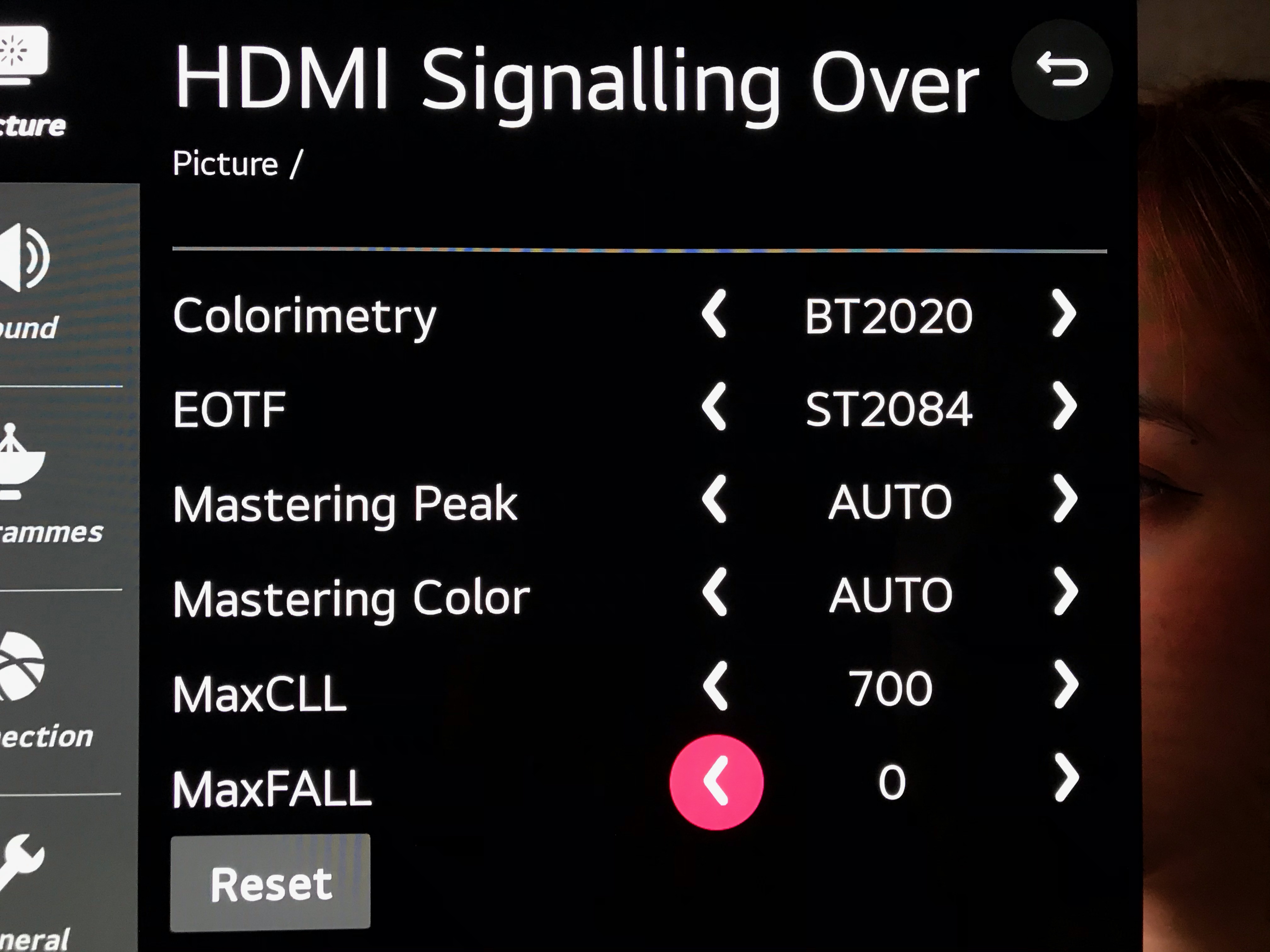

    I have LG 65CX OLED. Used the code 1113111 to set the HDMI Signal override as you explained.
    Although I am using Resolve 17. But all the concepts you shared above, applies there as well.

  3. Jon, OLED burning is a problem that can happen only in HDR or also in SDR?

    From what I understand, it can happen when bright static parts are displayed as the texts of software.
    But, I don’t understand how burning can happen in your type of process since you only display the video on the TV.
    It’s almost always moving, isn’t it? Or burning can happen in some minutes?!
    If not, why do you use the TV only at the end of the process?

  4. Did you have the opportunity to validate the process with Resolve (with your computer + the Blackmagic 4K Ultra Studio mini + the TV)?

  5. Hi Jon, how are you?

    Your articles are great! I am starting to study HDR and they are helping me a lot.

    Would you know how to teach me how to make Davinci Resolve 17 display HDR on the reference monitor? I have an LG OLED B9 55 and I use an RTX 3060TI video card, which has HDMI 2.1. Windows is already playing HDR, but davinci’s player does not display.

    1. I’m glad I could be of help! Here are the project settings for DaVinci Resolve 17: https://daejeonchronicles.com/2021/03/02/comprehensive-workflow-sony-a7s-iii-s-log3-hdr-10-in-davinci-resolve-studio-17-part-i/. I’m not familiar with Windows machines, but if after setting up your project according to the workflow you still aren’t getting HDR over your LG, you might check out the Blackmagic forums: there are a lot of threads with users who experienced similar issues; hopefully you’ll find your solution there!
